Alliance Q9 - BioSPX

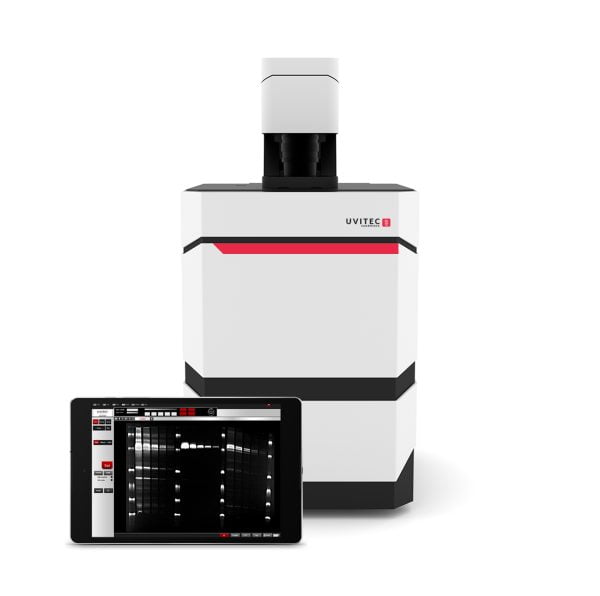

Alliance Q9

The highest-sensitive manual Chemidoc

Up to 18-megapixel resolution

7-position filter wheel

Fully upgradeable

Information

The Alliance Q9-series is Uvitec’s top-end chemiluminescence and spectral fluorescence imaging system, proudly boasting the highest optics specifications and sensitivity on the market. The Q9 Manual is a cost-effective imager, fully expandable and tailored to your workflow, upgradeable through plug-n-play technology.

Product Features:

Pre-calibrated optics
Up to 18-megapixel resolution
f/0.80 custom lens
-60°C regulated cooling
Fully upgradeable
Up to 13 illumination sources
7-position filter wheel
Unlimited software users

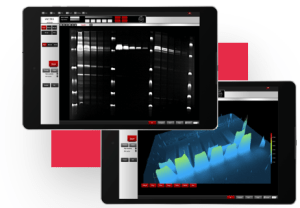

Key Advantages of the software:

Live-3D mode > unique pre-acquisition tool
Serial acquisition > repetitive, incremental, accumulative…
Auto add-marker > signal, marker and multiplex images
Customizable > all protocols adjustable, endless possibilities
Endless editing > countless tools included
Analysis > quantification, molecular weight, distances, colonies
Compliances > fully GLP and 21-CFR-part-11 compliant

Chemiluminescence

Western blotting

Chemiluminescent/ECL westerns, dot blots…

Fluorescence

Optional DNA and RNA gels with fluorescent stains

Ethidium Bromide, GelRed, GelGreen, SYBR Safe & Green & Gold, Sypro Ruby, Emerald, Midori Green…

Epi Fluorescence

Optional IR/NIR/RGB multiplexing with up to 8 wavelengths

UV 365nm – TLC plates, Qdots… Blue 420nm – DyLight 405, CFP, eCFP, Cerulean, Atto 425, Alexa 405… Blue 460nm – Cy2, GFP, eGFP, FITC, Alexa 488, Sypro, Bodipy, Atto 465, DyLight 488… Green 520nm – Cy3, Cy3.5, RFP, Alexa 532 & 568, Krypton, Atto 550, DyLight 549… Red 650nm – Cy5, Alexa 647, Atto 633, DyLight 633, DyLight 649… Red 690nm – Cy5.5 Atto 680, IRdye 680, Alexa 680 & 700, DyLight 680… NIR 740nm – Cy7, Alexa 750, DyLight 750… IR 780nm – IRdye 800, Alexa 790, DyLight 800…

Bioluminescence

In-vivo Luciferase and Fluorescence

Luciferin, fluorescent proteins (GFP, RFP, IRFP…) and stains

Visible Imaging

Optional Colorimetry and Protein gels

Coomassie Blue, Cooper, Silver-stained, Red Ponceau, Petri Dish colonies & colony counting…

Practicality

Auto-exposure > ideal exposure, for every sample
Pre-calibrated optics > effortless setting, in no time
Fully slide-out tray > hassle-free sample positioning
Mobile sample tray > painless westerns imaging
All-in-one > acquisition – editing – analysis, straight away

Applications

Femtogram-level > stunning detection of faintest signals
Confocal discs > boosted fluorescence signals capture
Filters > up to 18 filters to choose from

Optics

9.2 megapixels > massive resolution, HD pictures
f/0.80 custom lens > unrivalled camera sensitivity
-60°C camera cooling > radical background suppression
4.8 OD > outstanding weak/strong detection ratio
65,535 gray levels > research-level protein quantification

Darkroom

Stainless steel > long-lasting, robust instrument
Plug-n-play > upgrade any module, at any time
7-position wheel > and up to 18 filters to choose from
Q-smart darkroom > splendid Alliance-line darkroom
